APK838 is a heavy-duty self-service bill payment kiosk designed for public utilities, financial-service locations, tax-refund points, postal outlets, shopping malls, and government service centers.
With a 21.5-inch touchscreen, optional motorized EMV card reader, encrypted PIN pad, cheque scanner, QR-code scanner, receipt printer, and contactless card reader, APK838 provides a flexible hardware platform for secure payment and account-service workflows.
It helps organizations extend payment access, reduce pressure on staffed counters, and offer customers a more convenient self-service experience.
APK838 is built for applications where customers need to pay bills, check account information, scan payment codes, confirm transactions, print receipts, or complete other financial-service steps independently.
The kiosk can be configured around your payment platform, public-utility system, tax-refund process, or financial-service software. Its freestanding cabinet creates a clear, professional self-service point in busy public locations.
Key Specifications

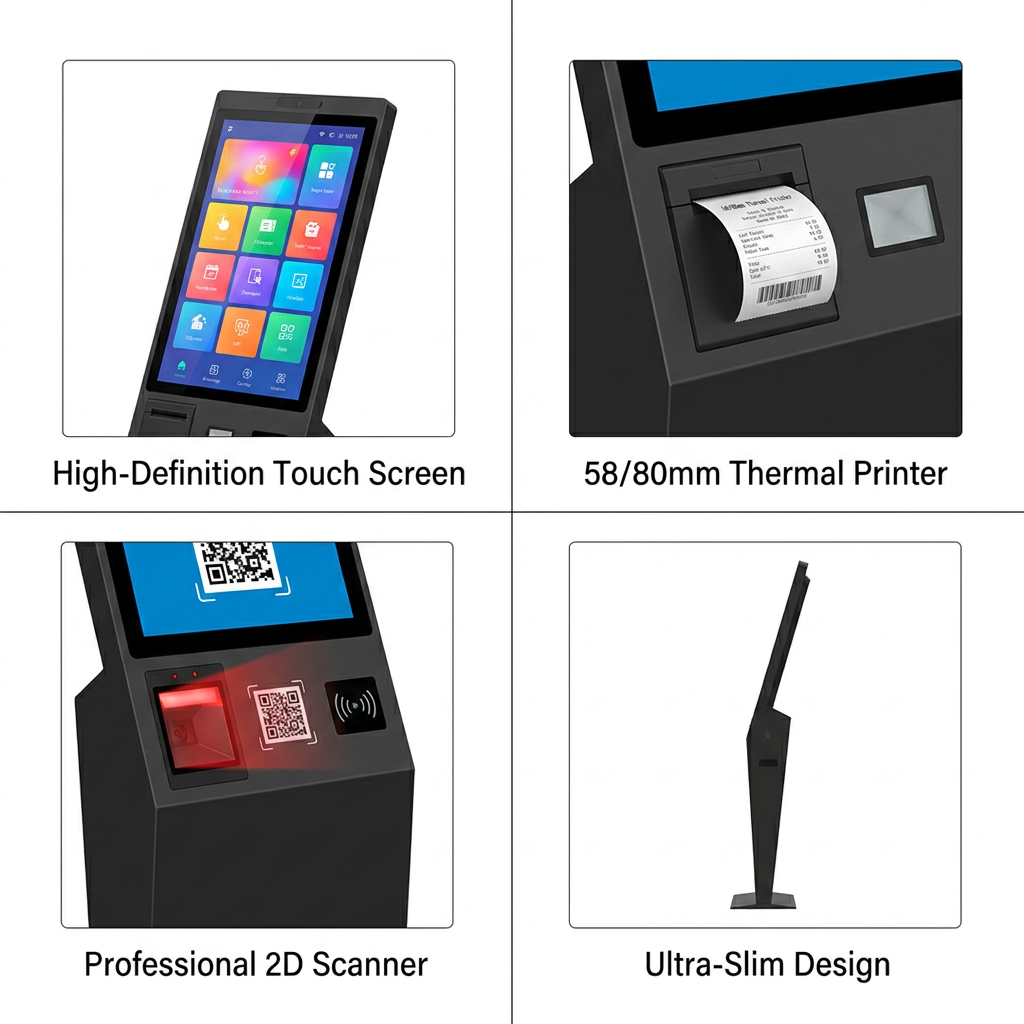

21.5-inch IPS Full HD touchscreen
10-point projected capacitive touch
Optional motorized EMV card reader/writer
Optional encrypted stainless-steel PIN pad
Optional cheque scanner with MICR validation
QR code and barcode scanner option
80 mm thermal receipt printer option
Android 11 or Windows 10/11 options
Dimensions: 1750 × 600 × 520 mm
APK838 helps organizations provide payment and account services beyond traditional staffed counters. Customers can use the touchscreen to access payment instructions, search account information, scan a bill QR code, complete a compatible card-based transaction, and collect a printed confirmation.
This helps create a more efficient service experience for both customers and operators, particularly during peak hours or in locations with high daily visitor traffic.
Typical Applications
Electricity, water, gas, and utility bill payment
Public-service account inquiries
Tax-refund service points
Postal financial-service outlets
Shopping mall payment-service areas
Government service centers
Telecom bill-payment counters
Financial-service and account-management terminals
APK838 can be configured with selected payment-related modules to match your software, payment flow, local requirements, and user experience goals.

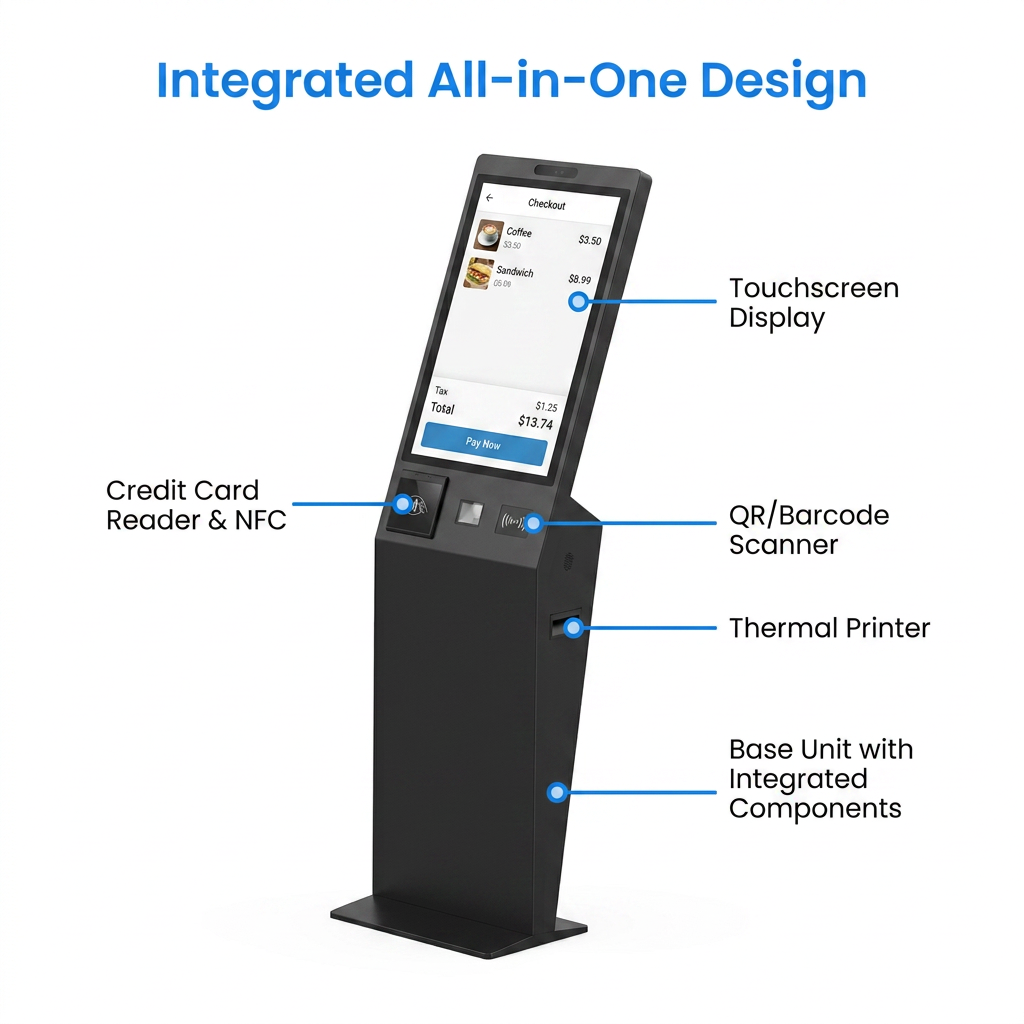

Optional hardware includes a motorized EMV card reader/writer, encrypted PIN pad, cheque scanner, contactless card reader, QR scanner, and thermal printer. This modular approach makes the kiosk suitable for a range of bill-payment and self-service financial workflows.
Optional Payment Modules
Motorized EMV card reader/writer
Encrypted stainless-steel PIN pad
Cheque scanner with MICR code validation
NFC and contactless card reader
2D QR code and barcode scanner
80 mm thermal receipt printer
1080P camera
Custom peripheral integration
APK838 can combine QR-code scanning, card interaction, touchscreen guidance, and receipt printing in one self-service workflow. Customers can scan a bill, review payment details, complete the required transaction steps through compatible software and selected modules, then receive a printed confirmation.
The optional 80 mm thermal printer supports fast receipt output for payment confirmations, account-service records, transaction slips, and other small-format documents.
Transaction Workflow Features
QR code and barcode scanning
Compatible contactless and card-reading modules
80 mm thermal receipt printer
Printing speed up to 180 mm/s
203 dpi receipt printing
Full-cut and half-cut support
Anti-jam printer sensor
Wi-Fi, Ethernet, and optional 4G connectivity
APK838 uses a heavy-duty sheet-metal enclosure, aluminum-alloy structural components, powder-coated finish, and hardened tempered-glass touchscreen protection. It is designed for regular use in public payment and financial-service environments.

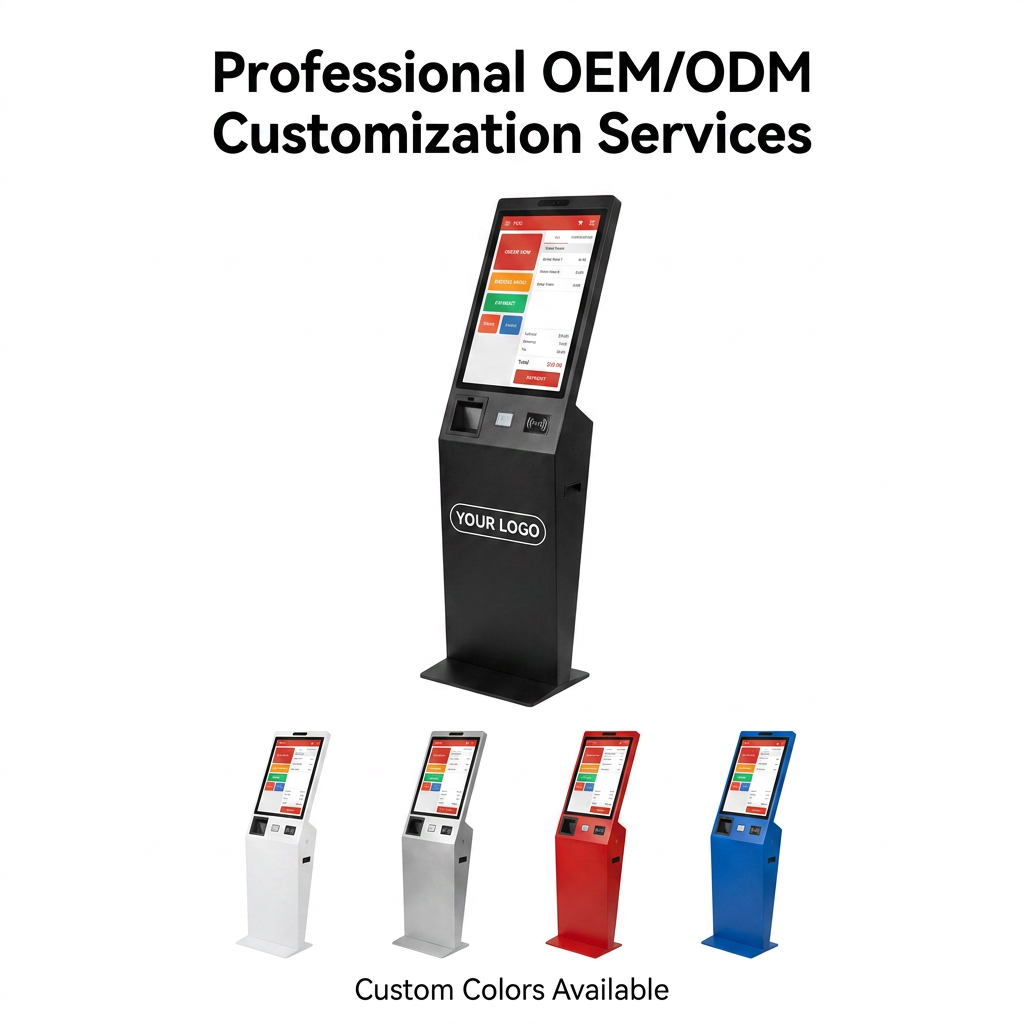

Custom cabinet colors, logo placement, selected modules, operating system, and internal hardware configuration are available for project-specific deployments.
Construction Highlights
Heavy-duty sheet-metal cabinet
Aluminum-alloy structure
Powder-coated finish
AG/AF tempered touchscreen glass
Surface hardness: ≥6H
Integrated 5W × 2 speakers
Standard white-and-black cabinet finish
Custom branding and configuration available
AONKIOSK develops configurable self-service hardware for public payment and financial-service environments. We combine enclosure design, selected payment-module integration, peripheral configuration, prototype testing, and scalable manufacturing to support practical self-service projects.
Select the card reader, PIN pad, cheque scanner, QR scanner, receipt printer, and other modules required for your bill-payment or account-service workflow.
APK838 uses a durable metal cabinet and protected touchscreen construction suitable for payment-service areas with frequent daily customer interaction.
Choose Android or Windows configurations according to your payment software, user interface, peripheral requirements, and network-management plan.
Customize the cabinet color, logo, module layout, operating system, connectivity, and selected hardware for public-utility, postal, retail, or government payment applications.
AONKIOSK helps organizations create reliable payment-service touchpoints that are easier for customers to access and simpler for teams to operate.
Focused on bill-payment workflows
APK838 is designed for public utilities, account inquiries, transaction confirmation, tax-refund services, and other self-service payment applications.
Payment modules selected for your project
Configure compatible EMV card readers, encrypted PIN pads, cheque scanners, contactless card readers, QR scanners, and receipt printers.
One terminal for the complete service journey
Guide customers from bill lookup and QR scanning to payment steps and printed confirmation through one organized kiosk interface.
Built for busy public locations
The heavy-duty freestanding cabinet is suitable for malls, postal outlets, government halls, public-utility centers, and financial-service areas.
Customizable for your brand and platform
Adapt the cabinet appearance, logo, modules, operating system, and internal configuration to your project requirements.
APK838 is a self-service utility bill payment kiosk designed for payment guidance, account inquiries, QR-code scanning, compatible card-based payment workflows, receipt printing, and other public financial-service applications.
APK838 is suitable for public utilities, tax-refund locations, postal outlets, shopping malls, telecom service points, government service centers, and other organizations that provide customer-facing payment services.
Yes. APK838 can be configured with a selected motorized EMV card reader/writer module. Final card-reader selection and applicable certification requirements should be confirmed for your target market.
Yes. An encrypted stainless-steel PIN pad can be selected as part of a project-specific payment configuration. The final module must be matched to your payment platform and local compliance requirements.
Yes. An optional 2D scanner supports QR codes and common barcode formats for bill lookup, payment codes, service confirmations, and other digital transaction workflows.
| Category | Specification |
|---|---|
| Product Model | APK838 |
| Product Type | Self-service utility bill payment kiosk |
| Installation Type | Freestanding floor-standing kiosk |
| Display Size | 21.5 inches |
| Display Panel | IPS LCD |
| Display Resolution | 1920 × 1080 Full HD |
| Display Aspect Ratio | 16:9 |
| Display Area | 477.20 × 268.70 mm |
| Display Brightness | 300 cd/m², typical |
| Viewing Angle | 89° / 89° / 89° / 89°, typical |
| Contrast Ratio | 1000:1, typical |
| Refresh Rate | 60 Hz |
| Touch Technology | Projected capacitive touch |
| Touch Points | 10-point multi-touch |
| Touch Input | Finger, gloved hand, or capacitive stylus |
| Touch Accuracy | ≤2 mm |
| Touch Response Time | ≤6 ms |
| Touch Surface | AG + AF tempered glass |
| Touch Surface Hardness | ≥6H |
| Android Option | Android 11, quad-core ARM Cortex-A55, 4 GB RAM, 32 GB storage |
| Windows Option | Windows 10/11, Intel Core i5, 8 GB RAM, 128 GB or 256 GB SSD |
| Network | Wi-Fi 2.4G/5G, RJ45 Ethernet, optional 4G |
| Ethernet Port | RJ45 10/100/1000M adaptive port |
| USB Ports — Android | 1 × USB 3.0, 1 × USB 2.0, OTG expansion |
| USB Ports — Windows | 1 × USB 3.0, 2 × USB 2.0 |
| HDMI | 1 × HDMI output |
| Optional EMV Card Reader | Motorized EMV card reader/writer; selected module supports EMV L1/L2 |
| Optional PIN Pad | Encrypted stainless-steel PIN pad; selected module supports PCI requirements |
| Optional Cheque Scanner | Cheque scanner with MICR code scanning and validation |
| Optional Scanner | 2D QR code and barcode scanner |
| Scanner Code Types | QR Code, PDF417, DataMatrix, UPC, EAN13, Code128, Code39 |
| Optional Card Reader | NFC and contactless card reader |
| Supported Card Types | Mifare One S50/S70 and Mifare UltraLight NTAG213/215/216 |
| Card Reading Distance | 0–5 cm, depending on card and module |
| Optional Camera | 1080P camera, up to 30 fps |
| Optional Thermal Printer | 80 mm thermal printer |
| Thermal Print Speed | Up to 180 mm/s |
| Thermal Print Resolution | 203 dpi |
| Thermal Print Width | 72 mm |
| Cutter | Full-cut and half-cut support with anti-jam sensor |
| Cabinet Material | Sheet metal with aluminum-alloy structure |
| Surface Finish | Powder coating |
| Screen Protection | AG/AF tempered glass |
| Speakers | 4Ω, 5W × 2 |
| Standard Cabinet Color | White and black |
| Customization | Cabinet color, logo, payment modules, internal layout, and hardware configuration |
| Product Dimensions | 1750 × 600 × 520 mm |
| Net Weight | Approx. 80.12 kg |
| Gross Weight | Approx. 98.35 kg |
| Operating Temperature | -15°C to 50°C |
| Operating Humidity | 10% RH to 90% RH, non-condensing |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 10% RH to 90% RH, non-condensing |
Payment-related modules, certifications, software integrations, and local compliance requirements must be confirmed according to the final project configuration and deployment market.
